GLOBAL SCALES PITLESS TYPE TRUCK SCALE
Model: SCS-S
20 ton to 100 ton Truck Weighing Scale Truck Scale
Product Features:
♦ Customized panel thickness(slab 8mm~16mm, checkered plate 4mm~18mm) causes thicker plate, can greatly enhance the working intensity and useful life of truck scale, then extend the service life of 15 years.
♦ Customized entire panel width (1.5m~3.4m) ensures solder-less joint to improve strength, and the overall compression capacity.
♦ Customized U-shaped beam height(190mm~420mm) and thickness (3mm~8mm), the service life and load-bearing capacity of this structure depends on the U-shaped beam height and thickness. The load-bearing capacity can be further increased by 25% through U-shaped beam back cover, and then more effectively prevent the impact caused by overloading of the weighing platform.
♦ Optional sections: channel steel, I-shaped steel, angle steel, etc: Optional Steel materials: Q235, Q345.
♦ Scale structure: designed according to the customers' actual situation (on the ground, in the ground).
♦ New design is structured with Cross Beams
♦ Electronic parts: We usually Install ZEMIC, KELI Brands of Load cells,
Indicators: D2+ , K3000
Optional: Truck scale Management Software
Advantages:
1.Design 6 pieces U beam design
2.U beam thickness design with 4mm-8mm
3.Pre camber machine to making platform have a high curves in Middle of platform
4.Auto welding machine to ensure welding is smooth and good strength
5.Shot blasting clean all dirty before painting

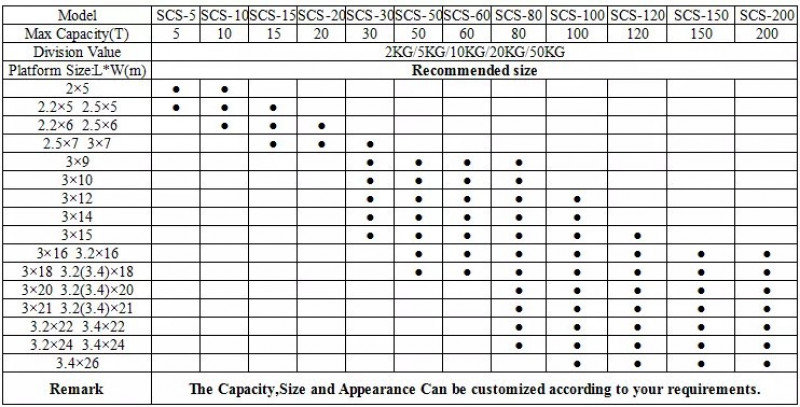

Product Description:
1. Width: 3m / 3.2m / 3.4m
2. Lenth: 6m / 7m /8m / 9m / 10m / 11.6m 12m /15m /16m /18m /20m
3. Capacity: 20ton / 30ton / 40ton / 50ton / 60ton / 80ton / 100ton / 120ton
4.Application of Weighing: steel, concrete, mining, recyclying ,chemical, grain etc industry
